Geothermal Heating and Cooling in Canada: Cost, Types & Is It Worth It?

What Exactly Is Geothermal Heating and Cooling?

Geothermal systems use the earth’s stable temperature to heat your home in winter and cool it in summer. Unlike a furnace that burns fuel to generate heat, or a traditional air conditioner that dumps heat outside, a geothermal system moves heat, so that you get year-round comfort that doesn’t depend on combustion, fluctuate with outdoor temperatures, or require natural gas. heating and cooling system

This type of system goes by a few names, such as geothermal HVAC, geothermal air conditioning, or simply a ground source heat pump. But they all refer to the same technology.

Below the frost line (roughly 1.5 to 2 metres down), ground temperatures across populated areas of Canada stay at a stable average of 4°C to 8°C year-round, regardless of what’s happening above ground. This temperature is constant and serves as an incredibly reliable energy source for the system.

How Geothermal Systems Actually Work?

To put it simply, a geothermal system circulates a water-based fluid through underground pipes called a ground loop.That fluid absorbs heat from the earth, carries it into the home, and a heat pump concentrates and transfers it to your living space.

In summer, the process reverses, and heat is pulled from your home and deposited back into the cooler ground.

There’s no combustion, no open flame, and no fuel tank. The system runs on electricity, but it produces significantly more energy than it consumes, typically 3 to 5 units of heat for every 1 unit of electricity used.

How a Geothermal Heat Pump Heats and Cools Your Home

One of the biggest misconceptions about geothermal is that it’s only designed to keep you warm in winter, but it can also cool your home during the summer.

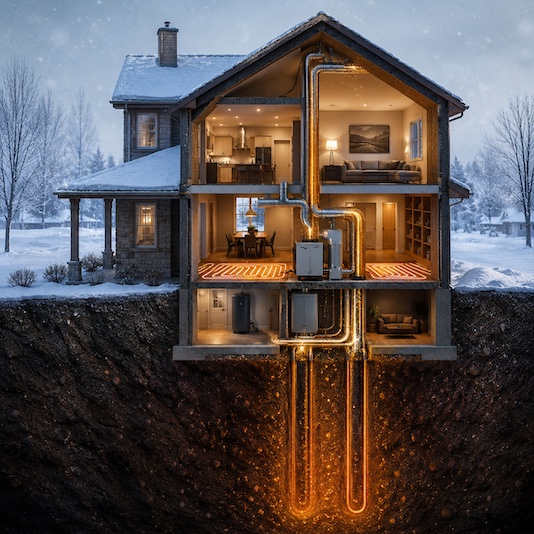

Heating Mode

In winter, the ground loop fluid (which stays above freezing even in Canadian winters due to antifreeze additives) absorbs heat from the earth and carries it to the heat pump inside your home. The heat pump compresses that energy and distributes it through your ductwork or radiant floor system, making it a form of renewable heating technology.
Even when outdoor temperatures drop to -20°C or colder, the ground below the frost line remains stable. That’s a major advantage over air-source heat pumps, which lose efficiency as outdoor temperatures fall.

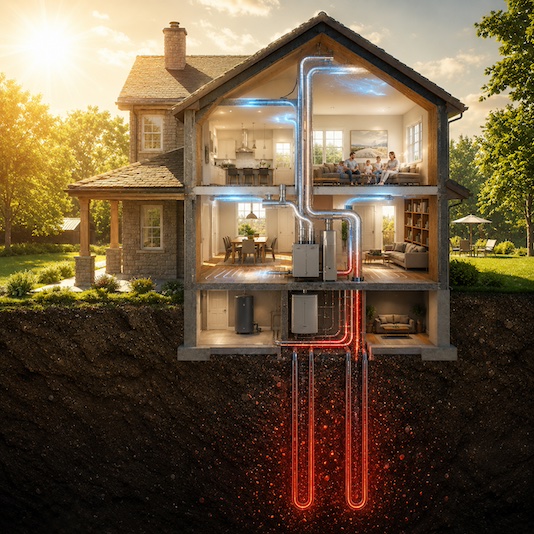

Cooling Mode (Geothermal AC)

In summer, geothermal cooling works by reversing the cycle. The heat pump extracts heat from inside your home and transfers it into the ground loop, where the earth absorbs it.
Since the ground remains cooler than summer air temperatures, this process is highly efficient, often more so than conventional central air conditioning.
Once the system is installed, you could say you’re living in a geothermal house, relying on the stable temperature of the earth beneath your feet to keep your family warm through a harsh Ontario winter.ʼ
Basically, one geothermal system replaces both your furnace and your central AC. And you don’t have to maintain two separate systems.

What’s Inside a Geothermal System and How Much Does It Cost to Install?

A geothermal system is made up of a few key components that work together to heat and cool your home.

Let’s break down the installation cost of each system component:

Component	Average Price	What It’s For
Boring / Ground Loop	• Horizontal: $15,000 – $32,000 • Vertical: $25,000 – $48,000+	Transfers heat between your home and the ground using underground piping with water or antifreeze.
Ground Source Heat Pump (Indoor Unit)	$6,000 – $16,000	Extracts heat from the ground loop and distributes heating or cooling throughout your home.
Ductwork	$2,000 – $8,000+	Delivers heated or cooled air to different rooms across your home.
Communication Modules	$400 – $1,600	Controls temperature settings, zoning, and system monitoring for better comfort and efficiency.
Accessories	$2,000 – $5,500	Includes a flow center pump pack, cold-climate antifreeze, a pressure expansion tank, and heavy-duty flush valves and manifolds.
Storage System	$2,000 – $4,500	Stores hot water and helps improve efficiency by reducing system cycling and supporting domestic hot water use.

Note: Prices are estimated averages for typical 3- to 5-ton systems in a standard-sized home (roughly 1,500 to 2,500 sq. ft.).

Types of Geothermal Systems & Which One Is Best For You

Your property does not have to fit a specific layout to use geothermal. The right ground loop configuration depends on factors such as lot size, local soil and rock conditions, and whether a nearby pond or lake is available.

Here are the four main types of ground loops used in geothermal systems:

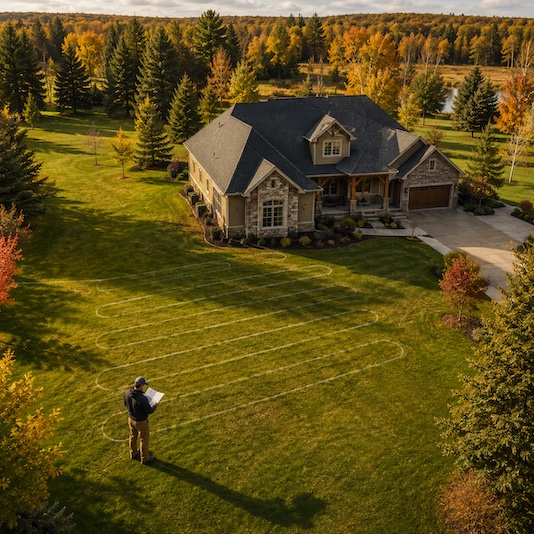

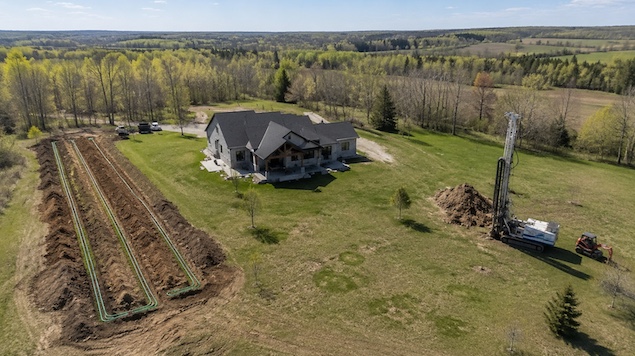

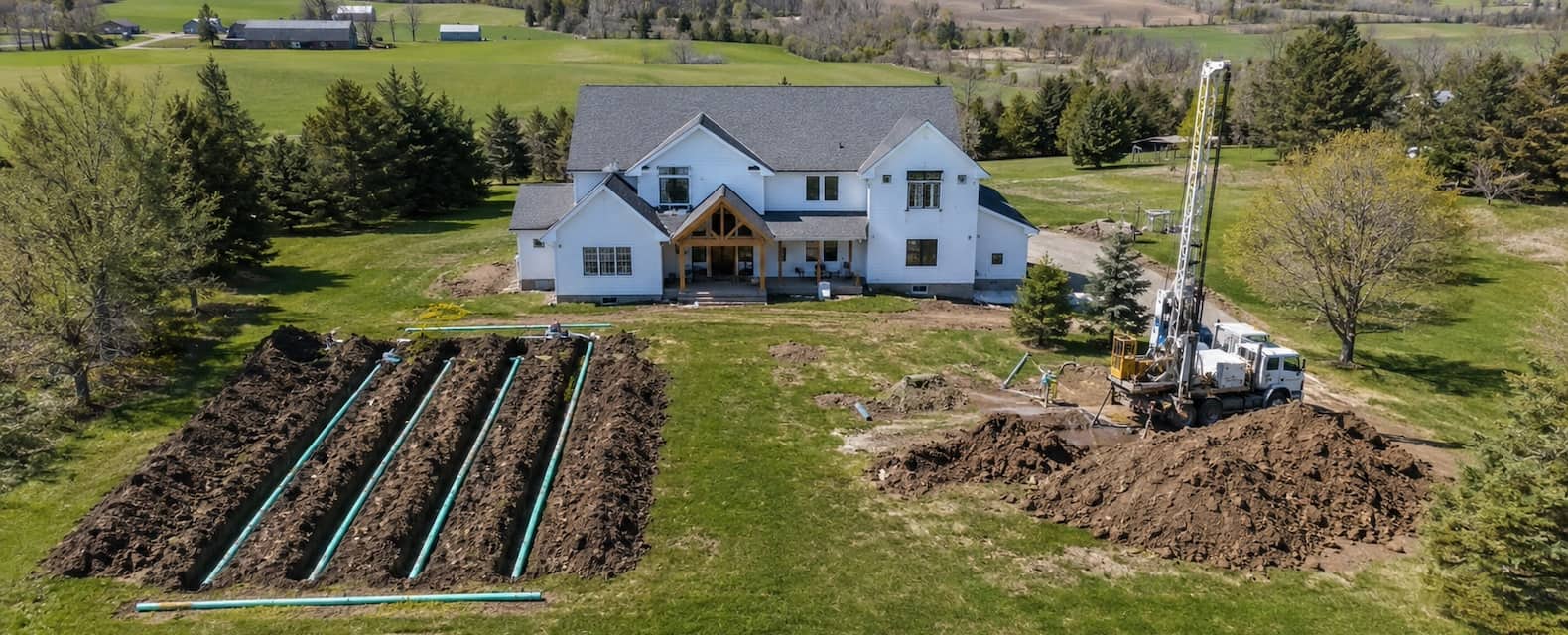

Horizontal closed-loop. Pipes are installed in trenches buried approximately 1.5 to 2 metres underground. In most cases, it’s used on rural properties with spacious yards.
Vertical closed-loop. Pipes are inserted into boreholes drilled 50 to 150 metres deep. Homeowners prefer this type when their land area is limited.
Pond or lake loop. If you have a body of water on or adjacent to your property, the loop can be submerged at the bottom. It’s cheaper to install, but not suitable for most urban properties.
Open-loop systems. This type uses groundwater directly as the heat source/sink. It’s highly efficient where groundwater is abundant and local regulations permit it.

Is Geothermal Worth It? Advantages and Disadvantages

Geothermal heating has earned a reputation as one of the most efficient ways to heat and cool a home, and for good reason.

Let’s take a look at both the advantages and the challenges before deciding if it’s right for you:

Factor	Clear Advantage You Get	Something You Should Know About
Your Monthly Bills	Once it’s up and running, it can dramatically reduce your monthly heating and cooling costs compared to traditional heating systems.	The trade-off is the higher upfront cost, which means it may take several years of energy savings for the system to pay for itself.
The Upfront Price	Government rebates and clean energy incentives can help reduce the upfront cost by thousands of dollars.	Even with available rebates, geothermal remains a major investment, with installation costs typically ranging from $20,000 to $50,000.
Eco-Friendliness	Geothermal uses the earth’s natural heat to warm and cool your home, producing no direct greenhouse gas emissions.	The system needs electricity to operate, so its environmental impact depends on how your local power grid generates it.
All-in-One Climate Control	One geothermal system can provide both heating and cooling, so you don’t need separate equipment.	To achieve maximum efficiency, the system must be properly sized and designed for your home’s heating needs.
How Long It Lasts	Geothermal heat pumps typically last 20 to 25 years, while underground ground loops can remain in service for 50 years or more.	The long lifespan adds value, but major component replacements can be more expensive than repairs on conventional HVAC systems.
Your Yard & Property	Geothermal systems can be adapted to different property types using horizontal, vertical, or other ground loop configurations.	Your yard is going to look like a construction zone for a few days since installation requires excavation or drilling.
Maintenance	Since the core infrastructure is buried safely underground, it’s completely protected from freezing Canadian winters, rust, and storm damage.	You can’t fix it yourself with a YouTube tutorial to save a few dollars. Routine checks and repairs must be handled by certified pros.

Is Geothermal Right for Your Home?

It’s an excellent long-term investment for the right property, but it’s not the right choice for every situation.

It makes the most sense when:
- You’re replacing an aging furnace and AC at the same time
- You plan to stay in the home for 10+ years
- Your home is well-insulated
- You have land access for horizontal loops
- You live in an area with moderate electricity rates
It’s worth thinking more carefully about when:
- Your current system has many years of life left
- Your property has significant excavation limitations
- Your home is poorly insulated (fix this first for better results)
- You’re in a region with exceptionally high electricity costs

What Does Geothermal Cost in Canada?

The short answer: it depends on your home, lot, and location.

Here’s a more detailed explanation:

System Type	Home Size & Tonnage	Average Cost Range	Property Requirements
Horizontal Loop	Under 2,200 sq. ft. (2 to 3 tons) Over 2,500 sq. ft. (4 to 5 tons)	$22,000 – $28,000 $28,000 – $32,000	Requires 0.25 to 0.5+ acres of clear, flat, open land free of underground utilities or dense tree roots for trenching.
Vertical Loop	Under 2,200 sq. ft.(2 to 3 tons) Over 2,500 sq. ft. (4 to 5 tons)	$30,000 – $38,000 $38,000 – $48,000+	Ideal for tight urban/semi-rural lots, heavily wooded yards, or properties where you want to preserve mature landscaping.
Pond / Lake Loop	Under 2,200 sq. ft. (2 to 3 tons) Over 2,500 sq. ft. (4 to 5 tons)	$18,000 – $24,000 $24,000 – $28,000	Requires an adjacent, permanent body of water that is at least 8 to 10 feet deep at its lowest summer point to prevent freezing.
Open Loop	Under 2,200 sq. ft. (2 to 3 tons) Over 2,500 sq. ft. (4 to 5 tons)	$15,000 – $25,000 $25,000 – $35,000	Requires an existing, high-flow water well system with excellent water quality and a reliable discharge area.

Heat Pumps: How They Heat in Winter and Cool in Summer
Professional heat pump installation ensures efficient heating and cooling for your home, improving comfort and energy savings year-round.
Read more
How Does Geothermal Heating and Cooling Work?
Read more
Geothermal Heat Pumps (Ground Source Heat Pumps): How They Work & TypesGeothermal Heat Pumps
Read more

Your Questions, Answered

Does geothermal work in Canadian winters?

Yes. In fact, this is one of geothermal’s biggest advantages. Because it draws heat from the ground rather than outdoor air, it remains highly efficient even when temperatures drop well below freezing.

Can a geothermal system replace my furnace and air conditioner?

Absolutely. A geothermal heat pump provides both heating and cooling from a single system. Some setups can also help heat your domestic hot water.

How long does a geothermal system last?

The indoor heat pump unit typically lasts 20–25 years, while the underground ground loop can last 50 years or more.

Is geothermal considered renewable energy?

Yes. Geothermal systems use renewable heat stored in the ground. They do not produce direct emissions, and in provinces with clean electricity, such as Quebec, BC, or Manitoba, their carbon footprint is very low.

How long does installation take?

Most residential installations take 2–5 days for the indoor work, plus 1–3 days for loop installation (longer for vertical drilling).
